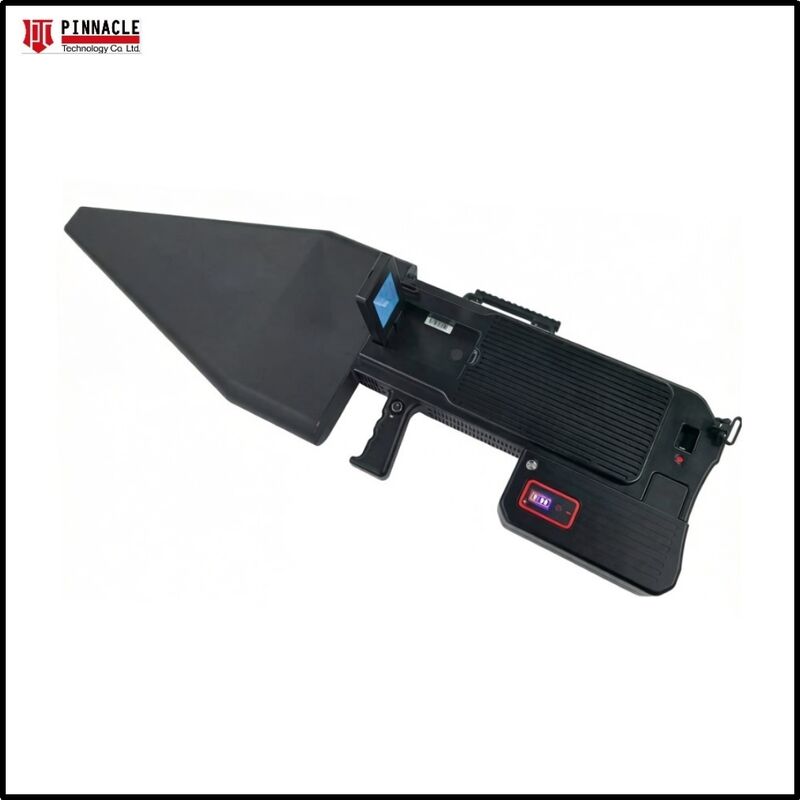

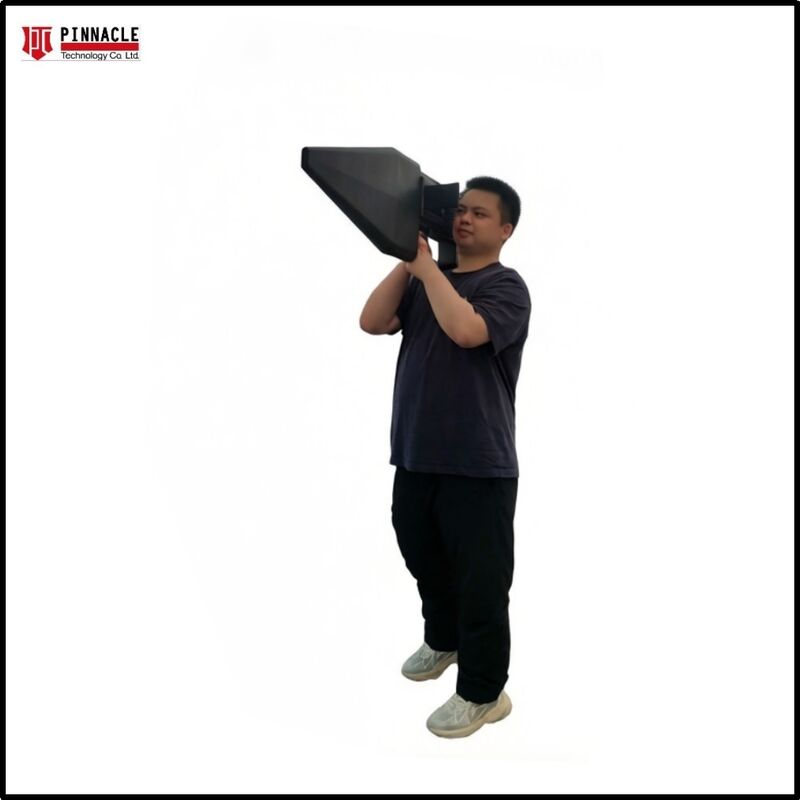

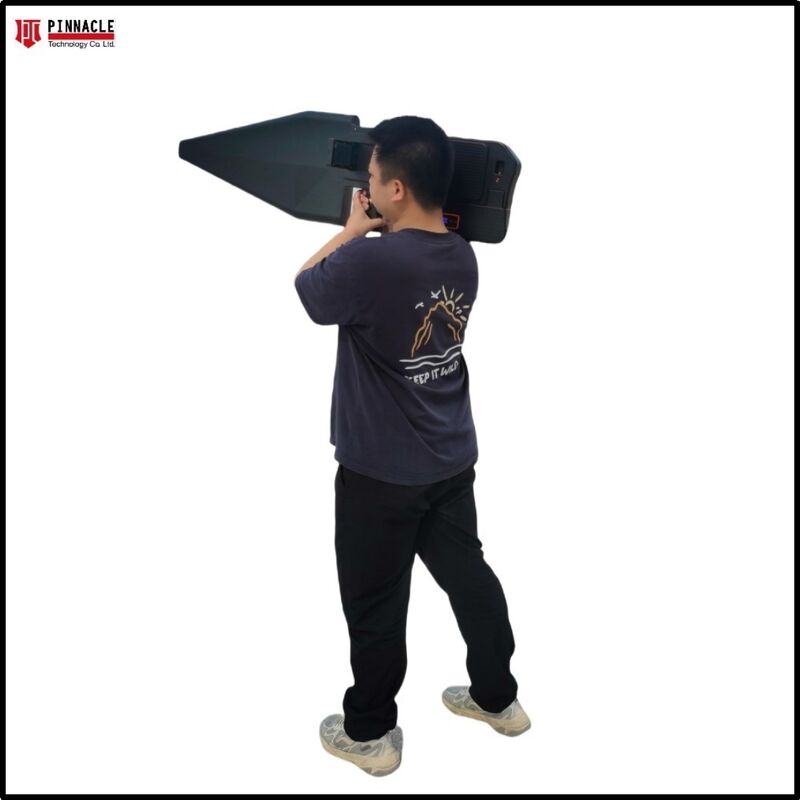

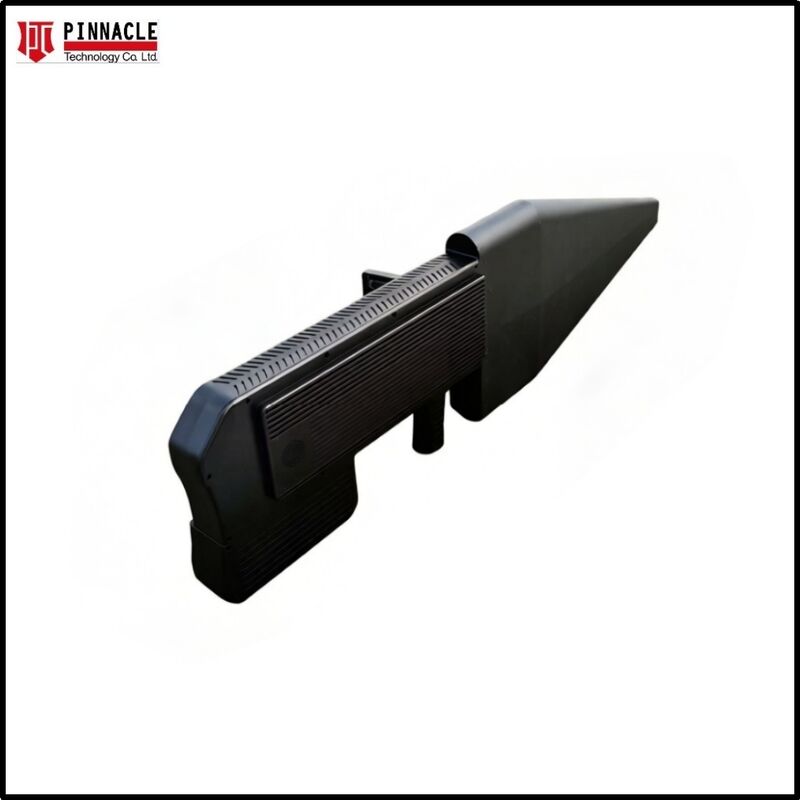

Handheld-Type Anti Drone Detector & Drone Jammer
In the era of rapid FPV deployments and evolving drone technology, passive defense is no longer enough. Our Anti Drone System is a cutting-edge, man-portable counter-UAS solution designed for the most demanding environments—from the front lines of a battlefield to the perimeter of critical gas plants and airports.
| Parameter | Specification |
|---|---|
| Detection Range | 300-6000MHz |
| Jamming Frequencies | 400MHz/900MHz/1.2G/1.4G/1.5G/2.4G/5.2G/5.8G |
| Detection Distance | 1-3km (dependent on local environment) |
| Jamming Distance | 1-3km (dependent on local environment) |
| Detection Methods | Real-time RF signal scanning with visual/audio alert interface |
| Jamming Operation | 1-key strike |
| Detection Antenna | Built-in High-Gain Omni Antenna |
| Jamming Antenna | Built-in High-Gain Directional Antenna |
| Detection Quantity | ≥10 |
| Output Power | 110W |
| System Dimensions | 1010mm × 320mm × 50mm |
| System Net Weight | 12kg |
| Battery Working Time | 40 minutes (fast charging) |
| Power Consumption | 330W |
| Power Solution | High-Capacity Detachable Lithium Battery (Swappable Design) |
| Display Interface | Sun-readable LCD for Frequency Monitoring & Battery Status |
| Humidity Range | 5%-95% |
| Operation Temperature | -20 to +50℃ |
Integrated UAV detection and jamming system with the following capabilities:
