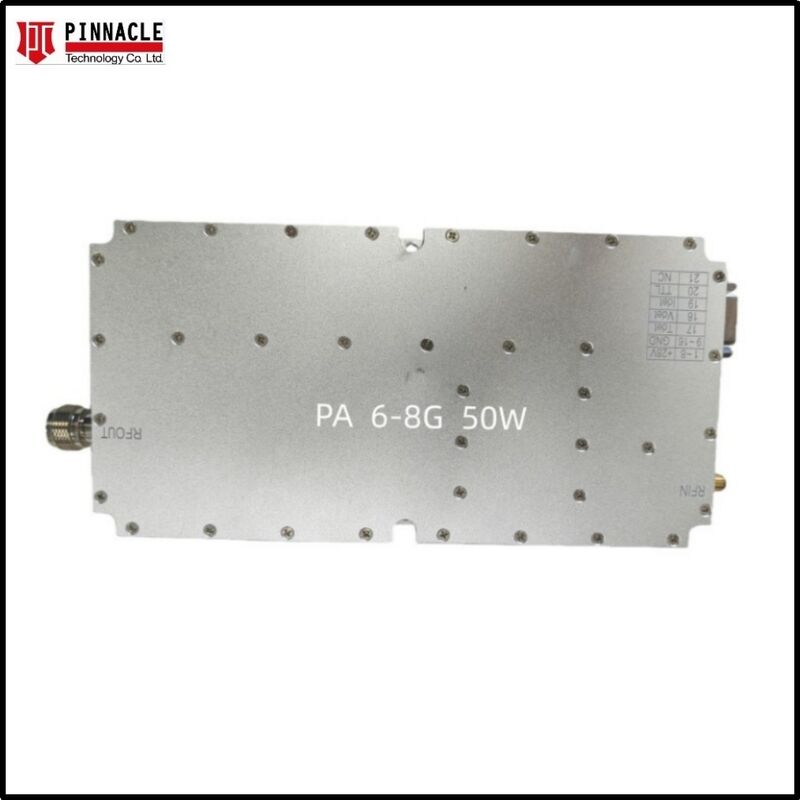

RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement

최고의 가격을 얻으십시오

비디오

Ultra Wideband RF Power Amplifier Module 2500 to 6000MHz 50W Output Power Suitable for 5G WiFi 6 Satellite and Radar System Applications

최고의 가격을 얻으십시오

비디오

400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module

최고의 가격을 얻으십시오

솔리드 스테이트 200W 고전력 2.4G 증폭기

최고의 가격을 얻으십시오

문의하기

지금 접촉하세요

제품 설명

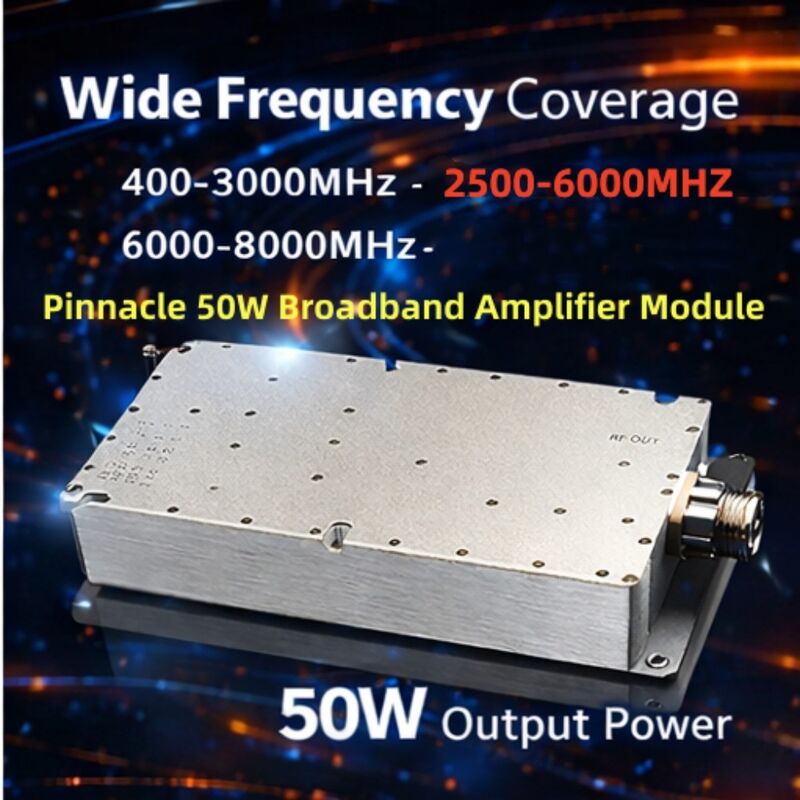

400-3000MHz Broadband Wide Band 50W RF Power Amplifier Module

This 400-3000MHz RF Module 50W Power Amplifier is a no signal source power amplifier module delivering 50W output power. Available in multiple frequency ranges including 400-3000MHz, 2500-6000MHz, and 6000-8000MHz RF PA configurations.

Key Features

Ultra-Wideband Performance

Seamless coverage from 400MHz to 3000MHz, eliminating the need for multiple narrow-band amplifiers.

Advanced GaN Technology

Utilizes high-efficiency Gallium Nitride on Silicon Carbide (GaN-on-SiC) devices for superior power density and thermal management.

Built-in Protection

Includes integrated circuitry for over-temperature protection and VSWR (Voltage Standing Wave Ratio) protection to prevent damage from signal reflection.

Compact & Rugged Design

Housed in a precision-machined aluminum alloy chassis, designed to withstand harsh industrial and military environments.

Customization Options

Frequency range and output power can be customized according to specific requirements.

Applications

Electronic Countermeasures (ECM): Ideal for signal jamming and broad-spectrum interference systems
Test & Measurement: A reliable lab-grade power source for EMC testing and antenna measurements
Communication Systems: High-power booster for 5G, Wi-Fi 6, and satellite ground stations
Radar Systems: Pulse and CW (Continuous Wave) applications for modern radar detection

Technical Specifications

Parameter	Specification
Frequency Range	400-3000MHz
Output Power (P_sat)	≥50W
Gain	≥50dB
In-band Gain Flatness	≤5.0dB
Working Current	≤5.5A
Connector	SMA-Female
Power Supply & Control Interface	DB7W2
VCC Power Supply & Maximum Voltage	+28V, +32V
Dimension	180×90×25mm (Not including connectors)
Net Weight	1kg
Power Supply Wire	Red+Black+Enable wire
Working Temperature	-40℃ to +55℃
